The CAR Format

CAR, or Content Addressable aRchives, is a format for bundling IPLD blocks into a large bundle. These bundles can be stored as files, typically with a .car extension, or transferred over the wire. We categorize CAR as a “transport” for IPLD.

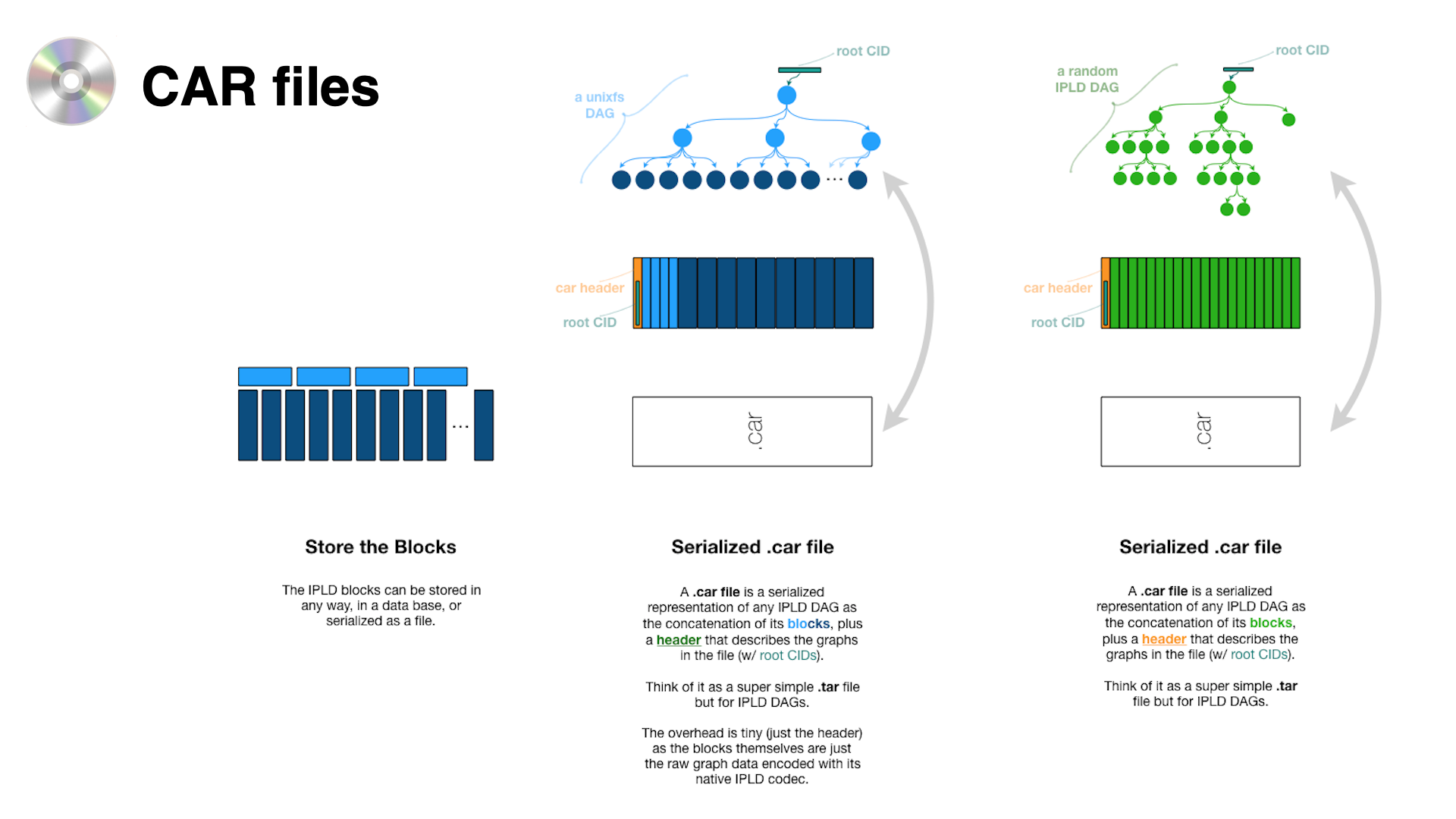

The CARv1 format comprises a sequence of length-prefixed IPLD block data. The first block in the CAR is the Header encoded as DAG-CBOR and the remaining blocks form the Data component of the format and are each additionally prefixed with their CIDs. The length prefix of each block in a CAR is encoded as a “varint”—an unsigned LEB128 integer. This integer specifies the number of remaining bytes for that block entry—excluding the bytes used to encode the integer, but including the CID for non-header blocks.

|--------- Header --------| |---------------------------------- Data -----------------------------------|
[ varint | DAG-CBOR block ] [ varint | CID | block ] [ varint | CID | block ] [ varint | CID | block ] …

There is no strict limits on the number of blocks a CAR may contain, nor how large they can be. It is also not strictly required that the blocks in a CAR be related. However, a typical CAR contains a single, complete DAG of blocks, whose root block’s CID is recorded in the Header of the CAR.

Example Use-cases

An example use-case: allows users to upload IPLD data in bundles (instead of block-by-block) using the CAR format via an HTTP API end-point. has fairly relaxed restrictions on the layout or contents of a CAR that a user supplies.

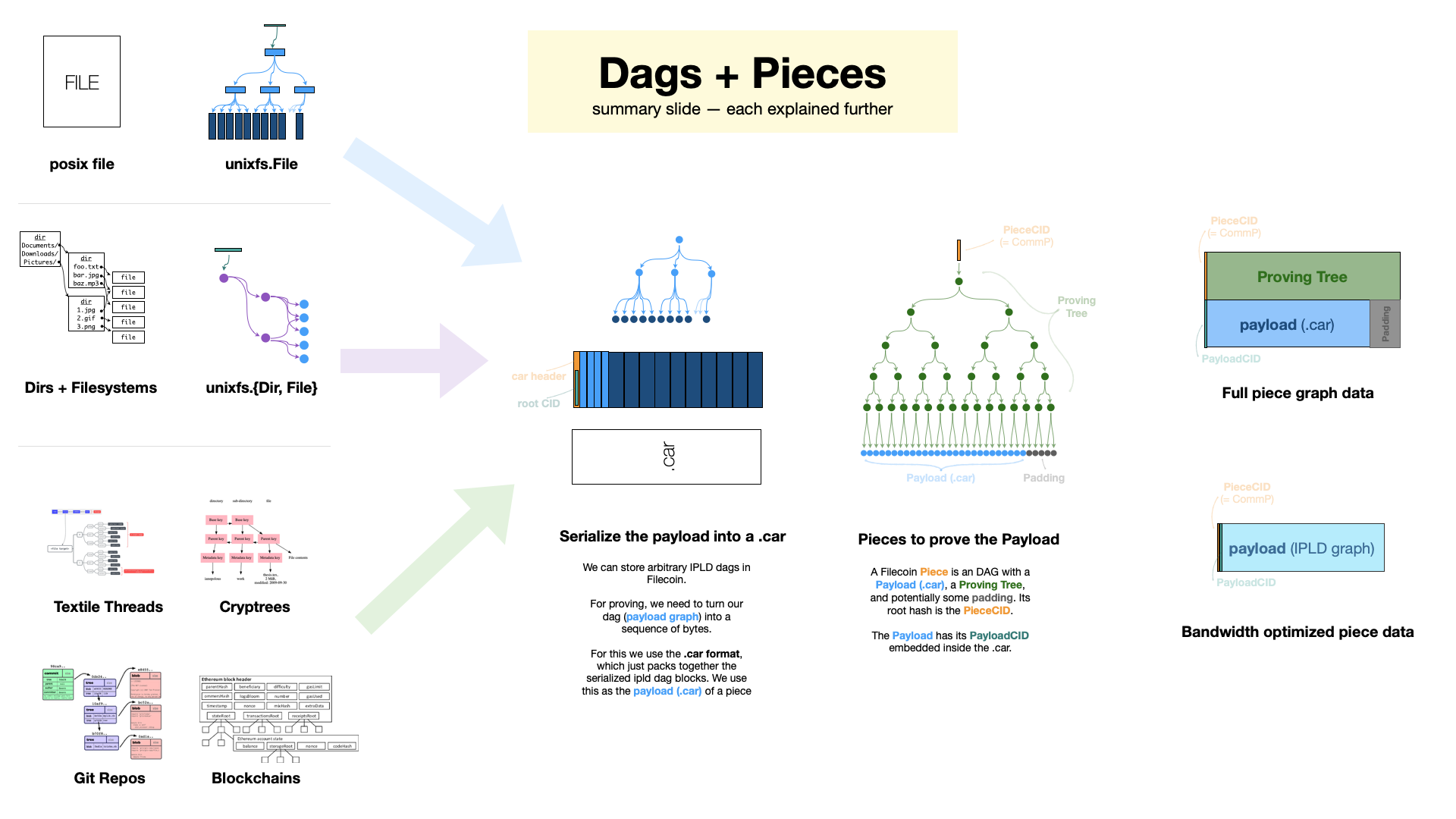

Another example use-case: Filecoin deals are typically performed using the CAR format to package a DAG as specified by an IPLD Selector (typically a selector that defines a complete DAG). These CARs have a single root, and the DAG’s blocks are deterministically ordered according to the depth-first walk that a selector traversal performs.


CARv2 is an incremental upgrade to CARv1 in that it wraps a CARv1 in an outer layer of data that provides some extra descriptive elements about the data in the CAR and a means for attaching an index of blocks within the CAR to the end of the archive. These improvements allow CARv2 to be used as an efficient IPLD block store (efficient on read operations, write operations are a little more complex due to the trailing index).

| 11-byte fixed pragma | 40-byte header | optional padding | CARv1 data payload | optional padding | optional index payload |

CARv2 has a flexible approach to index formats. The header provides details about where the various pieces of data are located: offsets and padding. The CARv1 format data payload being the most important component to identify (a CARv2 implementation can provide a CARv1 format reader that reads strictly from the bytes within this section).

The index at the end of the format provides information about what blocks are stored within the CARv1 data payload and where they exist within the archive. A CARv2 reader implementation can load the index and then use its CID->offset mapping information to seek directly to the requested block and not have to hunt for it. The index format is flexible, in that the first byte of the index identifies the format (which a given CARv2 implementation may or may not understand how to read) and the rest of the bytes conform to that format. There are currently two well-specified index formats, but there are a number of additional experimental index formats. Index formats may be selected depending on the suitability for a particular application or set of data - generation speed, usage performance, size, etc. Indexes typically only store the Multihash of a block, rather than the entire CID, for efficiency reasons (but there are other interesting characteristics enabled by being able to look up a block by multihash rather than the entire CID, even if the Multicodec is useful for decoding the block once it’s found).


Some considerations regarding performance:

  • Streaming: the CAR format is ideal for dumping blocks via streaming reads as the Header can be loaded first and minimal state is required for ongoing parsing.
  • Individual block reads: as the CAR format contains no index information, reads require either a partial scan to discover the location of a required block or an external index must be maintained and referenced for a seek and partial read of that data. See below regarding indexing.
  • DAG traversal: without an external index, traversal of a DAG specified by a “root” CID is not possible without dumping all blocks into a more convenient data store or by partial scans to find each block as required, which will likely be too inefficient to be practical.
  • Modification: CARs may be appended after initial write as there is no constraint in the Header regarding total length. Care must be taken in appending if a CAR is intended to contain coherent DAG data.

Further Reading

The CARv1 and CARv2 specifications, including specifications for CARv2 index formats, can be found on the IPLD specifications site:
